NoxCore Vision
NoxCore Vision are compact infrared camera cores based on the NoxEngine technology. They include all the features required for surveillance applications.
NoxCore Vision
Contact sales or request a quote
Contact usSelect your ideal configuration together with our experts
Each integration project is unique, and many configurations are available depending on your specific requirements, distance to the observed scene, available integration volume, autonomous use, or the need to interface with the mission or system computer.
That's why our team supports you from the very first steps, helping you define the setup that best fits your technical and operational needs.
Our team of experts will provide you with the necessary factual information to understand and choose among different technologies, interfaces, protocols, and image processing features. They will help you optimize your development efforts or suggest modifications to ensure the successful integration of your high-performance infrared cameras.
To benefit from personalized guidance and design the ideal solution for your application, get in touch with us. We'll determine together the right configuration for your mission.
Description
NoxCore Vision are compact infrared camera cores based on the NoxEngine technology. They include all the features required for surveillance applications (Site monitoring, Traffic surveillance, Pollutant search, etc.).
Equipped with the latest generation of thermal detector, cooled by stirling engine, NoxCore Vision cores offer unmatched performance in a reduced footprint and energy consumption.
The Noxant team is dedicated to provide you with in-detph assistance for the optimal integration of NoxCore Vision in your system, and trains your team to get the maximum out of the NoxEngine technology
We only present general information in our product pages. Enumerating all the possibilities would make reading tedious. In addition, your project is definitely unique. It is important that we discuss it together. Contact us
NoxCore Vision is part of NoxCore Family. Check other type of configurations available.
Technical Information
- Video Output Format :
- Color HDMI 720p with color overlay
- Optional SDI or Analog - Video Streaming :
- h.264 : RTSP or UDP
- RAW : GigEVision - Control :
- RS232 or Ethernet IP
- Cooled, snapshot FPA
- Spectral Range : MWIR – 3μm to 5μm
- Matrix size : 640 x 512 pixels
- Pitch 15μm
- Optical aperture f/5.5
- Cooling by Rotary Stirling
- Cooldown Time @20°C <6min
- <20W in steady operation
- Operating Temperature Range : -30°C to +65°C
- Storage Temperature Range : -40°C to +70°C
- Vibration : Operational 2g, IEC 68-2-29
- Shock : Operational 25g, IEC 68-2-26
Featured videos

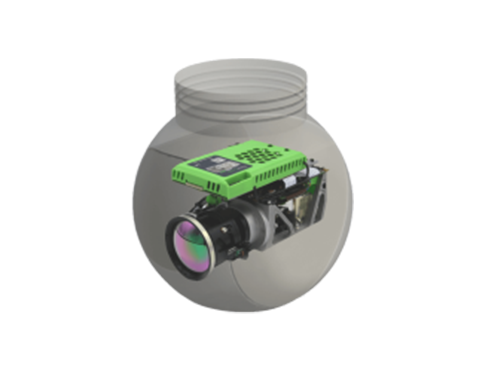

NoxCore Vision integration example

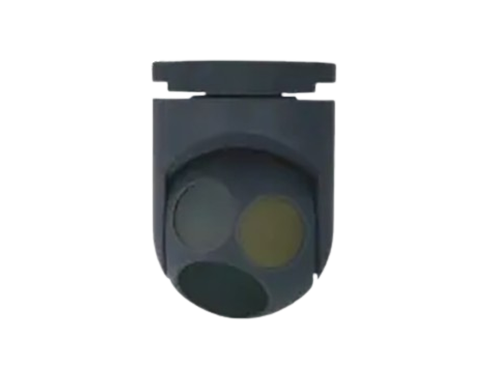

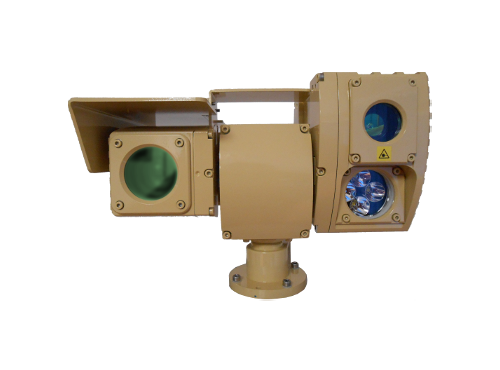

Related products
