Energy compensated general purpose Geiger-Muller tube
Our baseline gas volume and mixtures for gamma detection with energy compensation for ambient or effective dose measurements.
End window Halogen quenched gamma radiation counter tubes
Flat energy response over the range 50keV to 1.25MeV
Energy compensated general purpose Geiger-Muller tube
Contact sales or request a quote
Contact usTechnical Information
General Purpose Alpha, Beta, Gamma

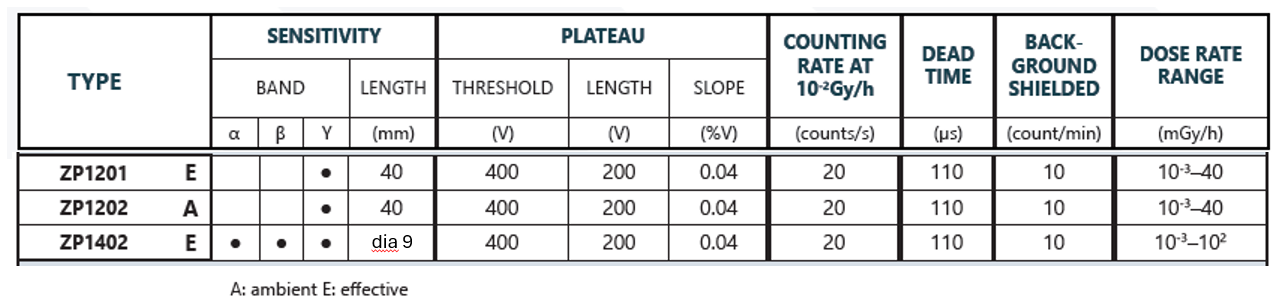

| Type | Band | Sensitivity | Length (mm) | Threshold (V) | Plateau | Counting Rate at 10−2 Gy/h (counts/s) | Dead Time (µs) | Background Shielded (count/min) | Dose Rate Range (mGy/h) | |||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| α | β | γ | Length (V) | Slope (%V) | ||||||||
| ZP1201 | E | ● | 40 | 400 | 200 | 0.04 | 20 | 110 | 10 | 10−3 – 40 | ||
| ZP1202 | A | ● | 40 | 400 | 200 | 0.04 | 20 | 110 | 10 | 10−3 – 40 | ||
| ZP1402 | E | ● | ● | ● | 9 | 400 | 200 | 0.04 | 20 | 110 | 10 | 10−3 – 102 |
