Energy compensated low dose gamma Geiger-Muller tube

Name: Energy compensated low dose gamma Geiger-Muller tube
Brand: Exosens

Increased volume and gas mix for higher sensitivity in low radiation environments. Combined with energy compensation for ambient or effective dose measurements.

Halogen quenched gamma radiation counter tubes

Flat energy response over the range 50keV to 1.25MeV

Energy compensated low dose gamma Geiger-Muller tube

Contact sales or request a quote

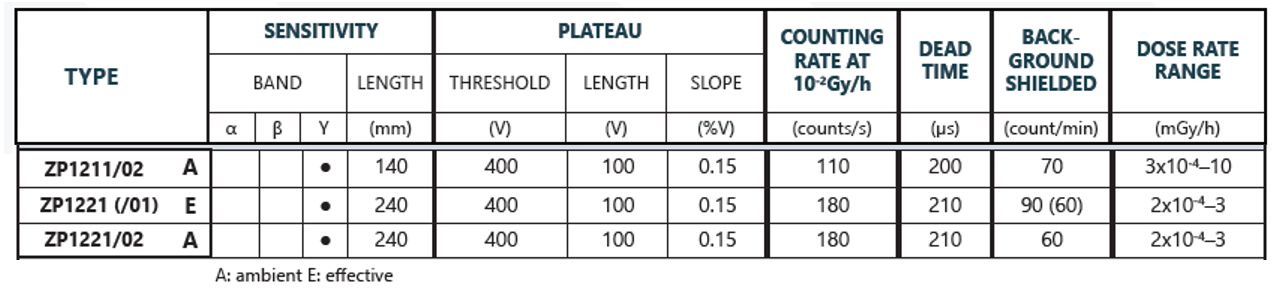

Technical Information

Low Dose Gamma

Type	Band	Sensitivity			Length (mm)	Threshold (V)	Plateau		Counting Rate at 10⁻² Gy/h (counts/s)	Dead Time (µs)	Background Shielded (count/min)	Dose Rate Range (mGy/h)
Type	Band	α	β	γ	Length (mm)	Threshold (V)	Length (V)	Slope (%V)	Counting Rate at 10⁻² Gy/h (counts/s)	Dead Time (µs)	Background Shielded (count/min)	Dose Rate Range (mGy/h)
ZP1211/02	A			●	140	400	100	0.15	110	200	70	3 × 10⁻⁴ – 10
ZP1221 (/01)	E			●	240	400	100	0.15	180	210	90 (60)	2 × 10⁻⁴ – 3
ZP1221/02	A			●	240	400	100	0.15	180	210	60	2 × 10⁻⁴ – 3
