General purpose bare Geiger-Muller tubes
Our baseline gas volume and mixtures for alpha, beta and gamma detection.
Halogen quenched radiation counter tubes
General purpose bare Geiger-Muller tubes
Contact sales or request a quote
Contact usTechnical Information
General Purpose Alpha, Beta, Gamma

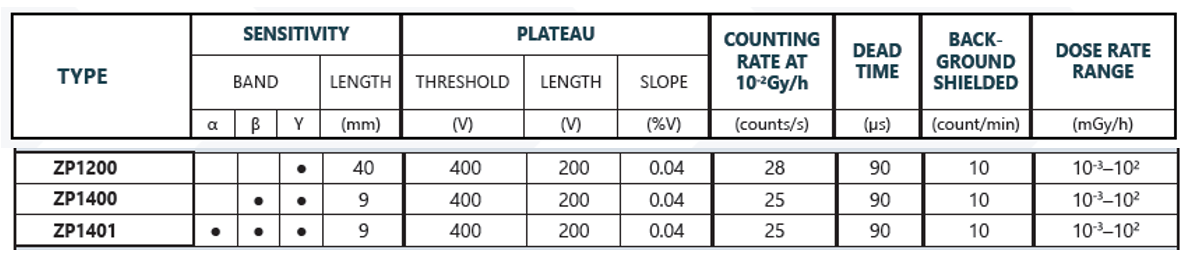

| Type | Sensitivity (Band) | Length (mm) | Threshold (V) | Plateau | Counting Rate at 10−2 Gy/h (counts/s) | Dead Time (µs) | Background Shielded (count/min) | Dose Rate Range (mGy/h) | |||
|---|---|---|---|---|---|---|---|---|---|---|---|
| α | β | γ | Length (V) | Slope (%V) | |||||||
| ZP1200 | ● | 40 | 400 | 200 | 0.04 | 28 | 90 | 10 | 10−3 – 102 | ||
| ZP1400 | ● | ● | 9 | 400 | 200 | 0.04 | 25 | 90 | 10 | 10−3 – 102 | |
| ZP1401 | ● | ● | ● | 9 | 400 | 200 | 0.04 | 25 | 90 | 10 | 10−3 – 102 |
