High dose gamma bare Geiger-Muller tubes
Reduced volume and gas mix for lower sensitivity to prevent overload in high flux.
Halogen quenched radiation counter tubes
High dose gamma bare Geiger-Muller tubes
Contact sales or request a quote
Contact usTechnical Information

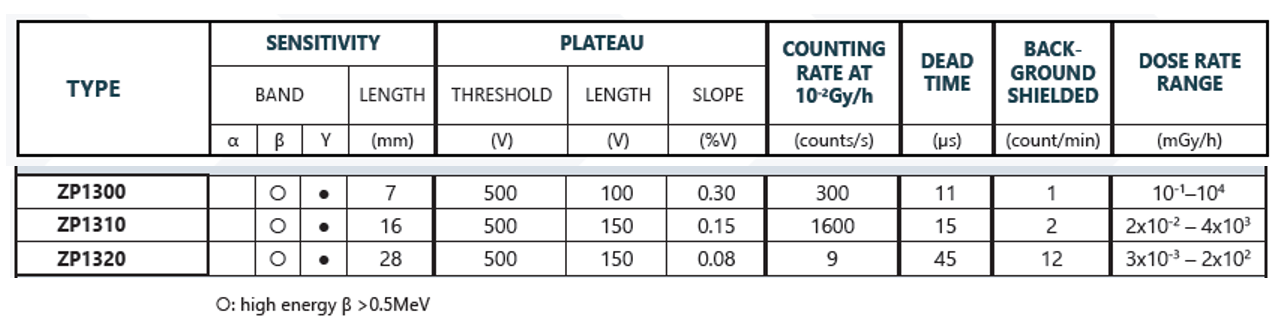

High Dose Gamma
Type | Sensitivity (Band) | Length (mm) | Threshold (V) | Plateau | Counting Rate at 10−2 Gy/h (counts/s) | Dead Time (µs) | Background Shielded (count/min) | Dose Rate Range (mGy/h) | |||
---|---|---|---|---|---|---|---|---|---|---|---|
α | β | γ | Length (V) | Slope (%V) | |||||||
ZP1300 | ○ | ● | 7 | 500 | 100 | 0.3 | 300 | 11 | 1 | 10−1 – 104 | |
ZP1310 | ○ | ● | 16 | 500 | 150 | 0.15 | 1600 | 15 | 2 | 2 × 10−2 – 4 × 103 | |
ZP1320 | ○ | ● | 28 | 500 | 150 | 0.08 | 9 | 45 | 12 | 3 × 10−3 – 2 × 102 |
